4K*2k 1×8 HDMI 8 Port HDMI Video Splitter Audio Amplifier Repeater 3D 1080p 1 In to 8 Out 1×8 HDMI Splitter Converter HDTV
Introduction:

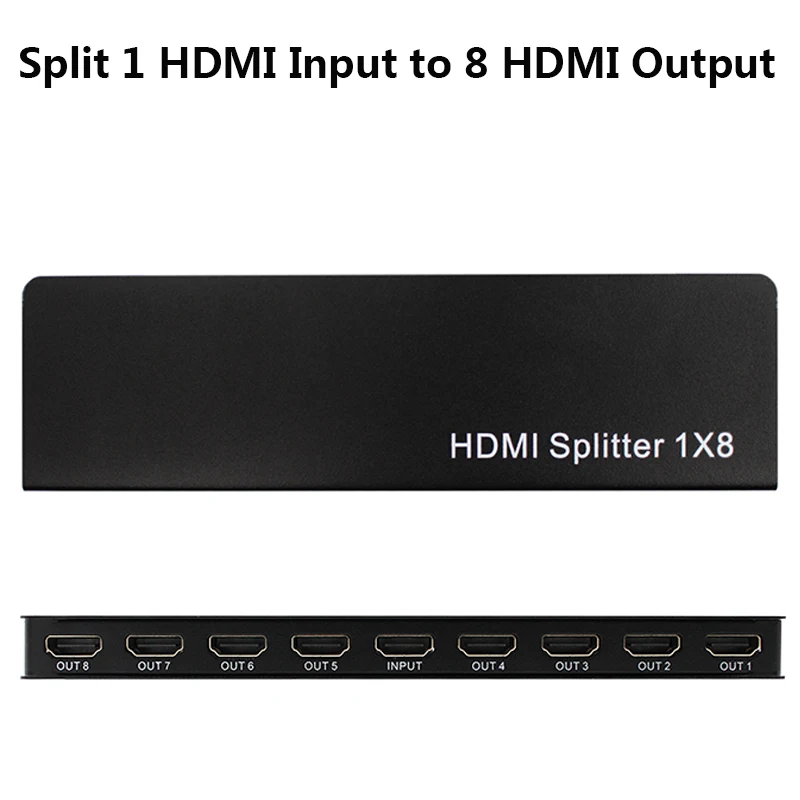

The HDMI 1×8 Splitter allows 1 single HDMI source to be split to 8 HDMI compatible monitors or projectors easily .The HDMI resolution up to 3840×2160/30Hz. it also very easy to be use with high stability and reliability. It is widely used at Video conferencing, conference presentations, home theater, office, teaching and so on.
Features:
- No need of driver, plug and play.
- Over current protection, stable performance
- Stack connection, expand to share more.
- HDMI resolution up to 4k@30Hz/3D
- Use AWG26 HDMI standard cable, transmission distance up to 15m. Output lossless transmission of 15m.
- When the HDMI output/input cable within 10m,the resolution support 4K.When the HDMI output/input cable over 10m,the resolution support 1080p.
Specifications:：
|
HDMI version
|
HDMI 1.4b
|
|
Input port
|
1*HDMI
|
|
Output port
|
8*HDM
|
|
HDMI Port
|
Gold-plated
|
|
Video color format
|
24/30/36 bit deep color
|
|
Audio format
|
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-ACS/DTS
|
|
HDMI input/output resolution
|
576p@50hz,720p@50/60hz,1080i@50/60hz,1080p@24/50/60hz,4kx2k@30hz
|
|
Operating temperature range
|
-0~55℃
|
|
HDMI input cable distance
|
≤15m AWG24 HDMI standard cable
|
|
HDMI output cable distance
|
≤15 AWG24 HDMI standard cable
|
|
Power supply
|
5V/1a
|
|
Weight
|
251.4g
|
|
Dimension
|
204mm X 58mm X 16 mm
|
Package contents:
HDM 1×8 Splitter……………………….1pcs
Power adapter………………………….1pcs
User Manual…………………………….1pcs
