Description:

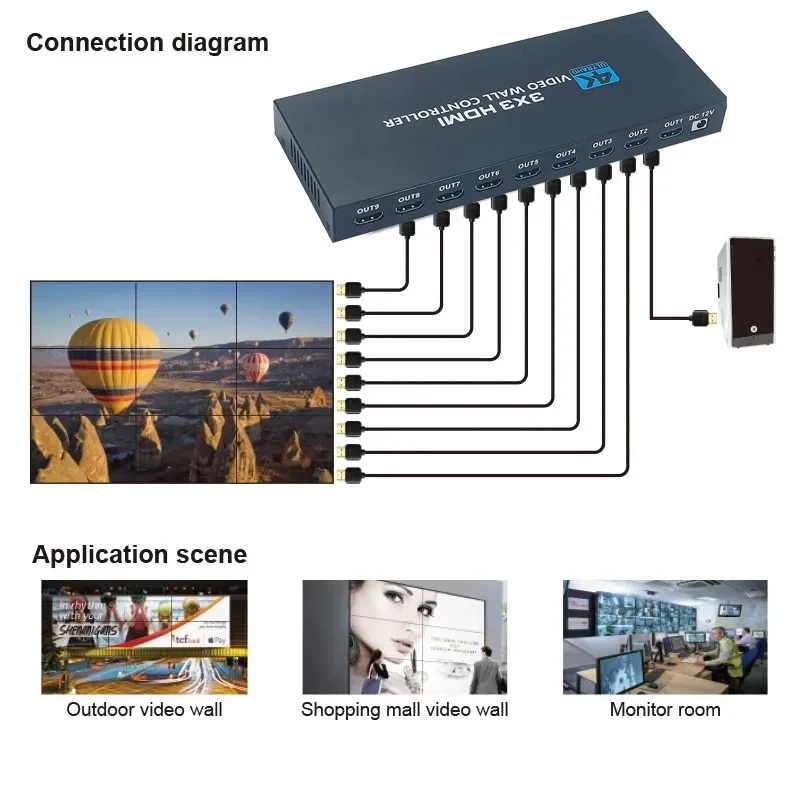

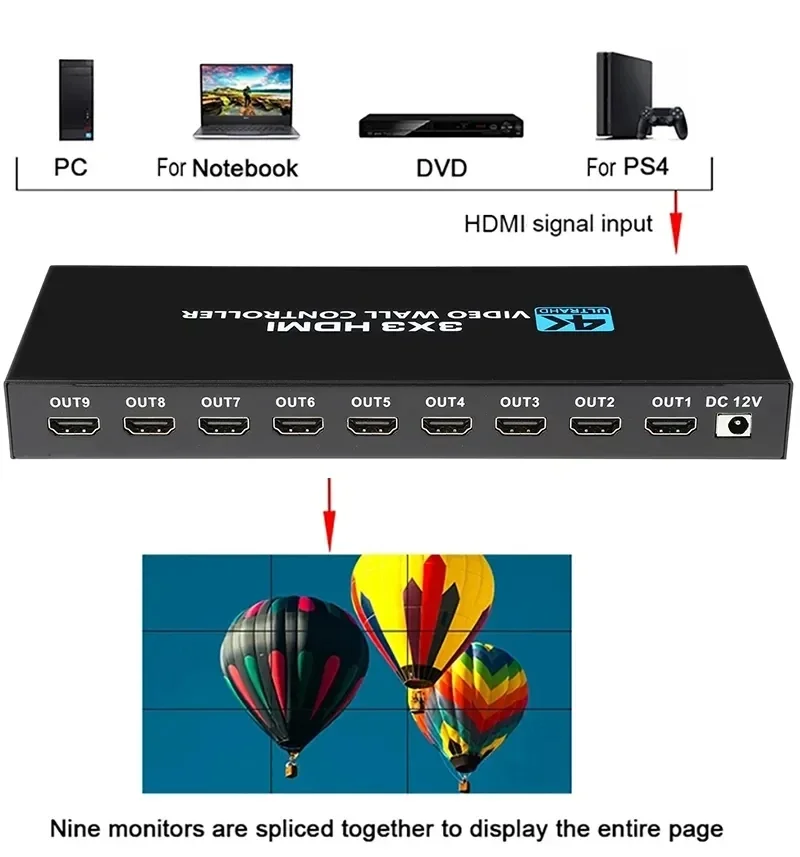

The 4K 3X3 video wall controller, support 1-wayHDMl or DVI input and 9 HDMl output,function is to divide a complete HDMl, DVI HDimage singal into 9 blocks and assign to 9 videodisplay unit (such as rear projection unit, LCD TVetc.). Complete with 9 HDMI high-definition videodisplay units to form a large dynamic image screen.
Features:

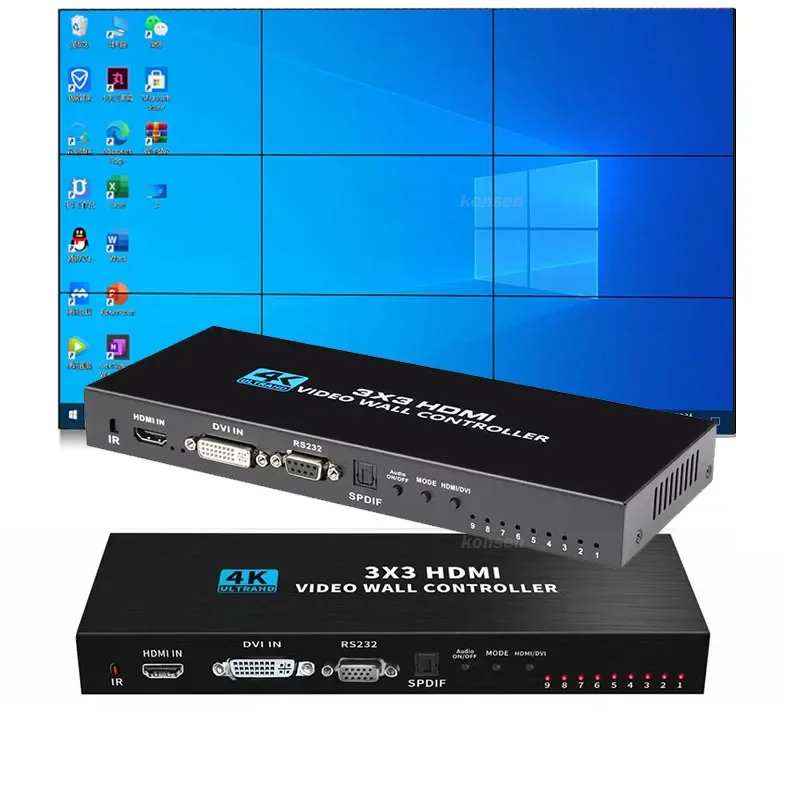

* Supports one DVl input or HDMI input.
* Input support HDMI1.4, HDCP1.4.
* Input resolution: 4K2K,1080P
* Output resolution: 1080P
* Support 3X3 stitching, easy operation, plug and play;
* Input support 1920x1080P 25/30/50/60Hz 3840x2160P 24/30Hz
* Output support 1920x1080P 60Hz
* Support for 9 HDMl outputs
* Supports SPDIF audio output over optical fibers.
* Supports RS232
* Supports remote control
* DC12V / 2A power supply
Package List:
1 x TV Video wall controller
1 x DC Power adapter
1 x Remote control(without battery)
1 x User manual
Important note:
1)The 4K refers to the HDMI inputs signal only.It supports up to 4K 30Hz in and 1080P 60Hz out.
2)Pls use qualified HDMI cable with all 19 pines wired and shielded to pair the source and display.
Most sync issues are caused by poor cables.
3)For a pleasant video experience, pls use Professional Video Walls.
4)It supports PCM 2CH stereo audio only either from Aux or the Digital toslink port.And under some cases, when the input is 4K 30Hz, there might be no audio. Pls set the resolutions to 1080P.
13 Display Modes
This 3×3 video image processor can connect up to 9 LCD TVs or other displays, which can support multiple display modes, such as 1×1,1×2,1×3,1×4,2×1,2×2,2×3,2×4,3×1,3×2,3×3,4×1,4×2.
All this modes provides variety splicing options, can easily switch the modes through the IR remote control without getting up or press the “Mode” key at the TV wall controller.
Also support RS 232 advanced remote-control.
180°Screen Rotation
With the rotation function, you can flip the image of all HDMI outputs to 180 degree one by one , which can adjust the screens in an orientation with the thin edges, making the multiple screens more comfortable.
Note!! Rotation is not supported under 1X1 mode.
Weight | 0.200 kg |
---|
